    Aluminum 1100 Annealed L Knurled Finned Tubes With 0.45mm Fin Thickness

    Ask Lasest Price
    Brand Name : Reliance
    Model Number : L TYPE
    Certification : CE,ISO...
    Price : N/A
    Payment Terms : T/T, L/C
    Supply Ability : Daily capacity up to 5,000 Meters
    Delivery Time : Ex-work with 1 month on receipt of order.
    • Product Details
    • Company Profile

    Aluminum 1100 Annealed L Knurled Finned Tubes With 0.45mm Fin Thickness

    Aluminum 1100 Annealed L knurled finned tubes with 0.45mm fin thickness


    General L-type production capacity

    General specifications of KL type fin tubes

    Finning Facility: 7 finning machines;

    Daily capacity up to 5000 meters;

    Fin type: Solid plain

    Tube OD : 50.8mm max.

    Tube Length : no lomit

    Fin Height : 16.5 mm max.

    Fin Thickness: generally 0.4mm ~0.6mm

    Fin Pitch :12FPI min


    Specifications:


    KL Type Tension Wound Tube is combined with two different materials.


    ItemsGeneral MaterialsPopular ASTM Materials
    Core Tube MaterialCarbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

    1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

    2. Stainless Steel: TP304/304L,TP316/TP316L

    3. Copper:UNS12200/UNS14200/UNS70600,

    CuNi70/30,CuNi 90/10

    4. Titanium: B338 Gr 2

    Fins Material

    Aluminum & Copper & Steel

    1. Aluminum(Alu.1100,Alu.1060)

    2. Copper.

    3. Steel


    All dimensions are in Inches and specification upon your requests.

    Tube OD

    Fin Height

    Fin Thickness

    Fins per Pitch

    5/8

    3/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    3/4

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    1

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    1 1/4

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    1 1/2

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    Pease email us for more information.

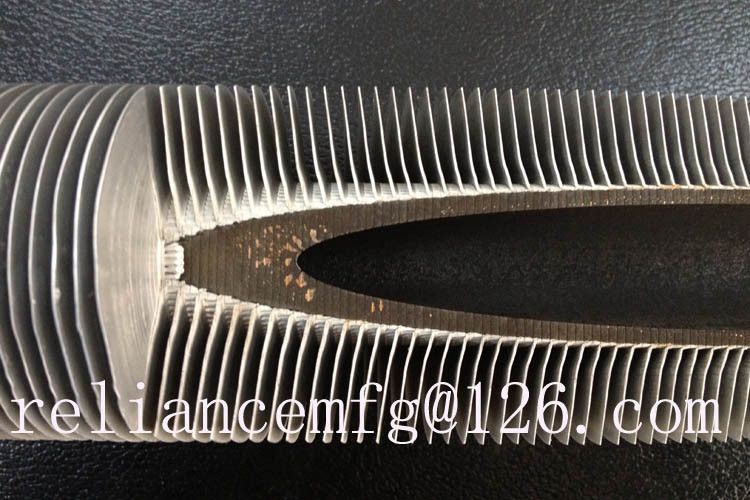

    Manufacturing process: The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.


    Surface Protection

    Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.


    Acceptance Criteria

    API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).


    Accessories

    Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).


    Delivery Condition

    Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of L Type Tension Wound Finned Tube.


    Packing:

    The desiccants are put into each package for continental transportation as well.


    Advantages

    • One-stop manufacturer shop from core tube supply to fin tube machines
    • ISO 9001:2008 certified company
    • Experienced and dedicated management and qualfied manpower
    • Quickest response, competitive price, highese quality and shortest schedule
    • Tube stock availability for general grades of carbon steel and stainless steel
    • Technical support services for fin tube machines and replacement accessories

    Aluminum 1100 Annealed L Knurled Finned Tubes With 0.45mm Fin ThicknessAluminum 1100 Annealed L Knurled Finned Tubes With 0.45mm Fin Thickness
