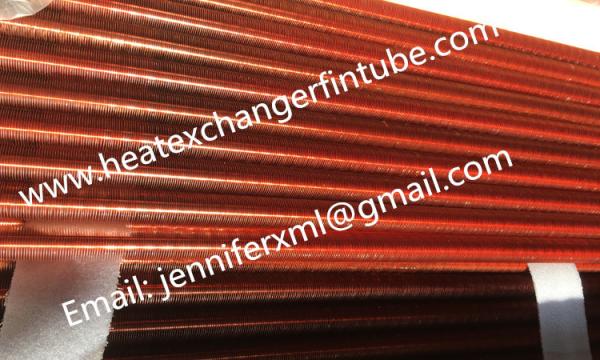

Tension wound heat exchanger fins tubes for air cooled condenser

Description:

Manufacturing process: The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.

Surface Protection

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.

Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).

Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).

Delivery Condition

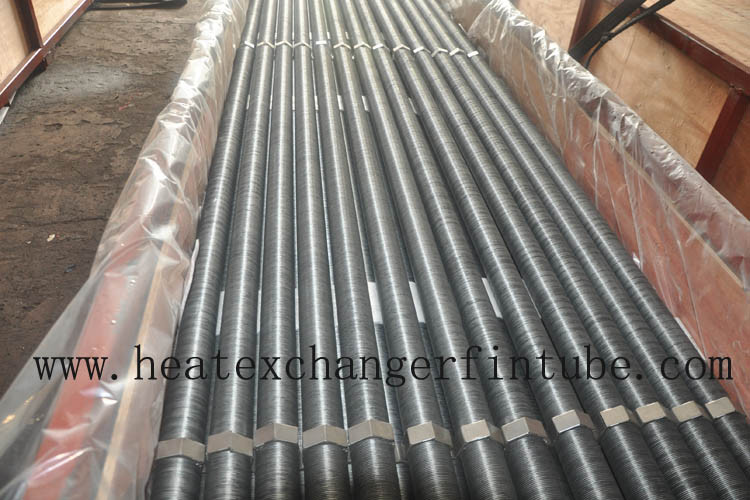

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of LL Type Tension Wound Finned Tube.

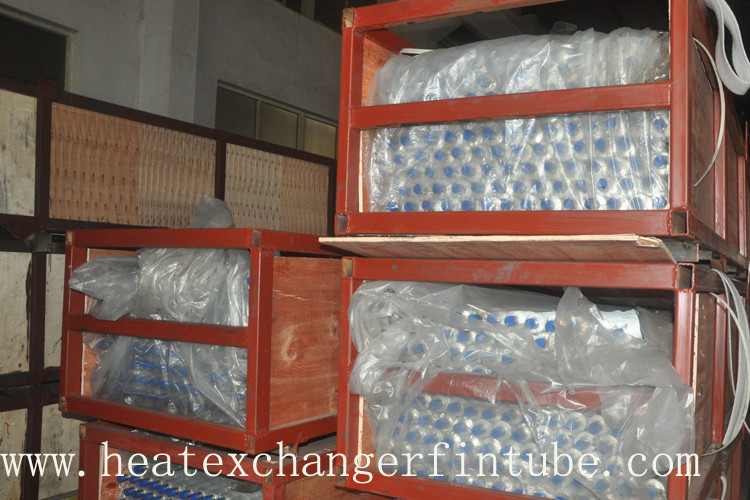

Packing:

The desiccants are put into each package for continental transportation as well.

Applications:

The common application fields are:

1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
3. The petroleum, chemical and petrochemical industries;
4. The food processing and refrigeration industries;
5. Natural gas treatment;

pecifications:

Tension Wound heat exchanger fin tube is combined with two different materials.

Competitive Advantage:

1. We have more than 10,000 square meters workshop, including 7 finning machines, daily capacity up to 5,000 Meters.
2. The finning machines are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...
3. This method of manufacturing overlapped LL type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).
4. The LL TYPE fin tubes can withstand a temperature of up to 170°C and provide a better corrosion protection by overlapping the feet of the L shapes. Maximum operating temperature: 170°C

About Reliance

Jiangsu Reliance Thermal Equipment Co., Ltd is all about thermal transfer finned tubes products. We have a long-term fabrication and supply experience in the business of FINING MACHINES and FINNED TUBES used in air-cooled heat exchanger, economizers, boilers, gas turbines, refining and petrochemical industries ect.

Advantages

• One-stop manufacturer shop from core tube supply to fin tube machines
• ISO 9001:2015 certified company
• Experienced and dedicated management and qualfied manpower
• Quickest response, competitive price, highese quality and shortest schedule
• Tube stock availability for general grades of carbon steel and stainless steel
• Technical support services for fin tube machines and replacement accessories

FINNED TUBES PRODUCTS & SERVICE AVAILABLE

Fabrication Capacities

(1)  Fourteen extrusion fining lines, daily capacity around 15,000 meters

(2)  Five type L/LL/KL fining lines, daily capacity around 5000 meters

(3)  Seven G- base fining lines, daily capacity around 7000 meters

(4)  Two ERW studding lines, daily capacity around 80000 studs

(5)  Four ERW High Frequency Spiral fining lines, daily capacity around 30 tons

(6)  Three bending machines, maximum capacity 76X4

(7)  Five DC ERW H/HH fining lines, daily capacity around 20 tons

(8)  One PLC high speed punch presser

Reliance have become a qualified manufacturer and reliable supplier for high-quality thermal transfer finned tubes used in air-cooled heat exchanger,economizers,boilers,gas turbines,refining and petrochemical industries ect.

If you are interested in any of our products, please do not hestitate to contact us @reliancemfg@126.com
