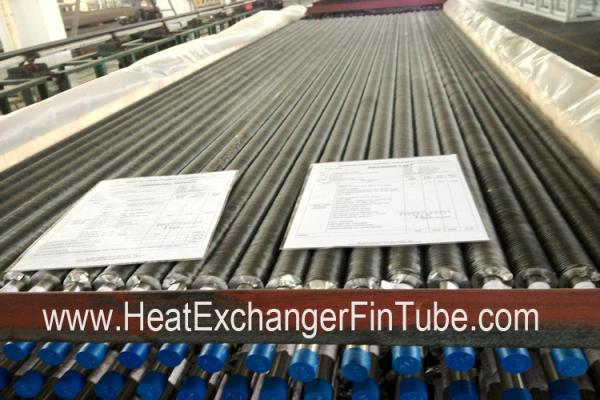

TP316 / 316L SMLS Stainless Steel , OD19X2WT LL Type Air Cooling Fin Tube

ASTM A213 / A213M : Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A312/ A312M : Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

ASTM A269/ A269M :Seamless and Welded Austenitic Stainless Steel Tubing for General Service

Quick Detail:

Manufacturing process:

The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.

Surface Protection

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.

Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).

Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).

Delivery Condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of LL Type Tension Wound Finned Tube.

Packing:

The desiccants are put into each package for continental transportation as well.

Applications:

The common application fields are:

1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
3. The petroleum, chemical and petrochemical industries;
4. The food processing and refrigeration industries;
5. Natural gas treatment;

Specifications:

LL Type Tension Wound Tube is combined with two different materials.

Competitive Advantage:

1. We have more than 10,000 square meters workshop, including 7 finning machines, daily production capacity up to 5,000 meters.
2. The finning machines are designed and assembled by ourselves (Reliance) and we can offer you finning machines and all accessories etc...
3. This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
4. L TYPE fin tubes provide contact area between the fin strip and the tubes surface and protect the tube wall from atmosphere corrosion. This LL TYPE design is much economical than KL, even G-embedded type.

About Reliance

Jiangsu Reliance Thermal Equipment Co., Ltd is all about thermal transfer finned tubes products. We have a long-term fabrication and supply experience in the business of FINING MACHINES and FINNED TUBES used in air-cooled heat exchanger, economizers, boilers, gas turbines, refining and petrochemical industries ect.

Advantages

• One-stop manufacturer shop from core tube supply to fin tube machines
• ISO 9001:2015 certified company
• Experienced and dedicated management and qualfied manpower
• Quickest response, competitive price, highese quality and shortest schedule
• Tube stock availability for general grades of carbon steel and stainless steel
• Technical support services for fin tube machines and replacement accessories

FINNED TUBES PRODUCTS & SERVICE AVAILABLE

Fabrication Capacities

(1)  Fourteen extrusion fining lines, daily capacity around 15,000 meters

(2)  Five type L/LL/KL fining lines, daily capacity around 5000 meters

(3)  Seven G- base fining lines, daily capacity around 7000 meters

(4)  Two ERW studding lines, daily capacity around 80000 studs

(5)  Four ERW High Frequency Spiral fining lines, daily capacity around 30 tons

(6)  Three bending machines, maximum capacity 76X4

(7)  Five DC ERW H/HH fining lines, daily capacity around 20 tons

(8)  One PLC high speed punch presser

Reliance have become a qualified manufacturer and reliable supplier for high-quality thermal transfer finned tubes used in air-cooled heat exchanger,economizers,boilers,gas turbines,refining and petrochemical industries ect.

If you are interested in any of our products, please do not hestitate to contact us @reliancemfg@126.com
