Metallic integral helical low finned tube, Fin pitch 19FPI/26FPI/28FPI/30FPI/36FPI/43FPI

FOREWORDS

The heat exchange is a very important factor in the process of treatment of hydrocarbons; it allows obtaining the operating conditions in the various stages of treatment of gas, so as to obtain an optimal production yield.

Description:
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.

Delivery of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube, or bent with designed Bend Radius.

Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications.

Acceptance ceritia:
WOLVERINE / HPT / GEWA-K & GEWA-KS

Delivery condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.


Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

1. Heating systems
2. Ventilation systems
3. Refrigeration and climate control systems
4. Mechanical engineering
5. Automotive manufacturing
6. Chemicals and pertrochemical and power plant technology

Process of fining

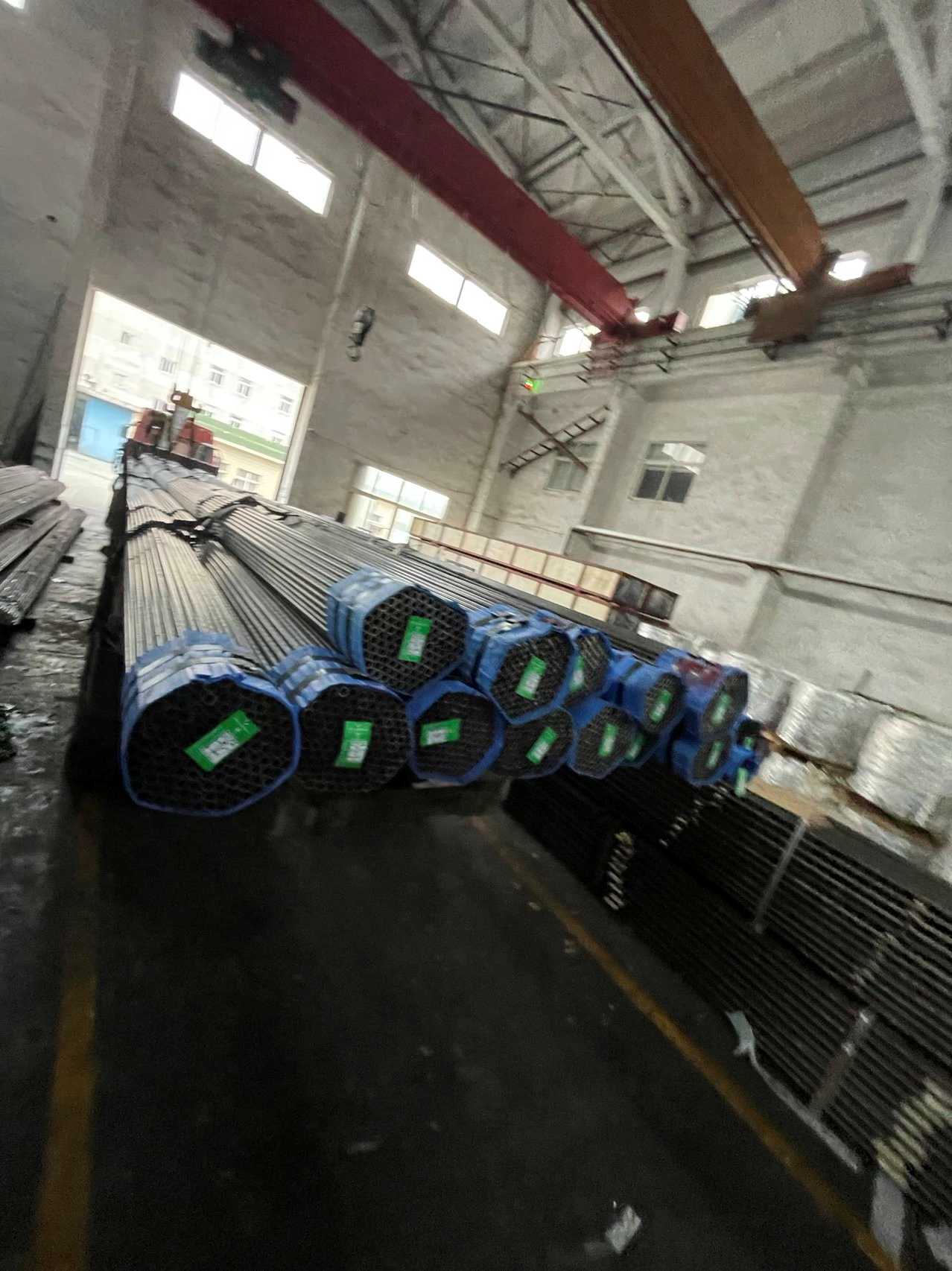

1>>>Tubes arrival at our workshop

2>>>Fining Completion

3>>> Visual and Dimensional check

4>>>Hydro test after fining

5>>> Tube ends protection

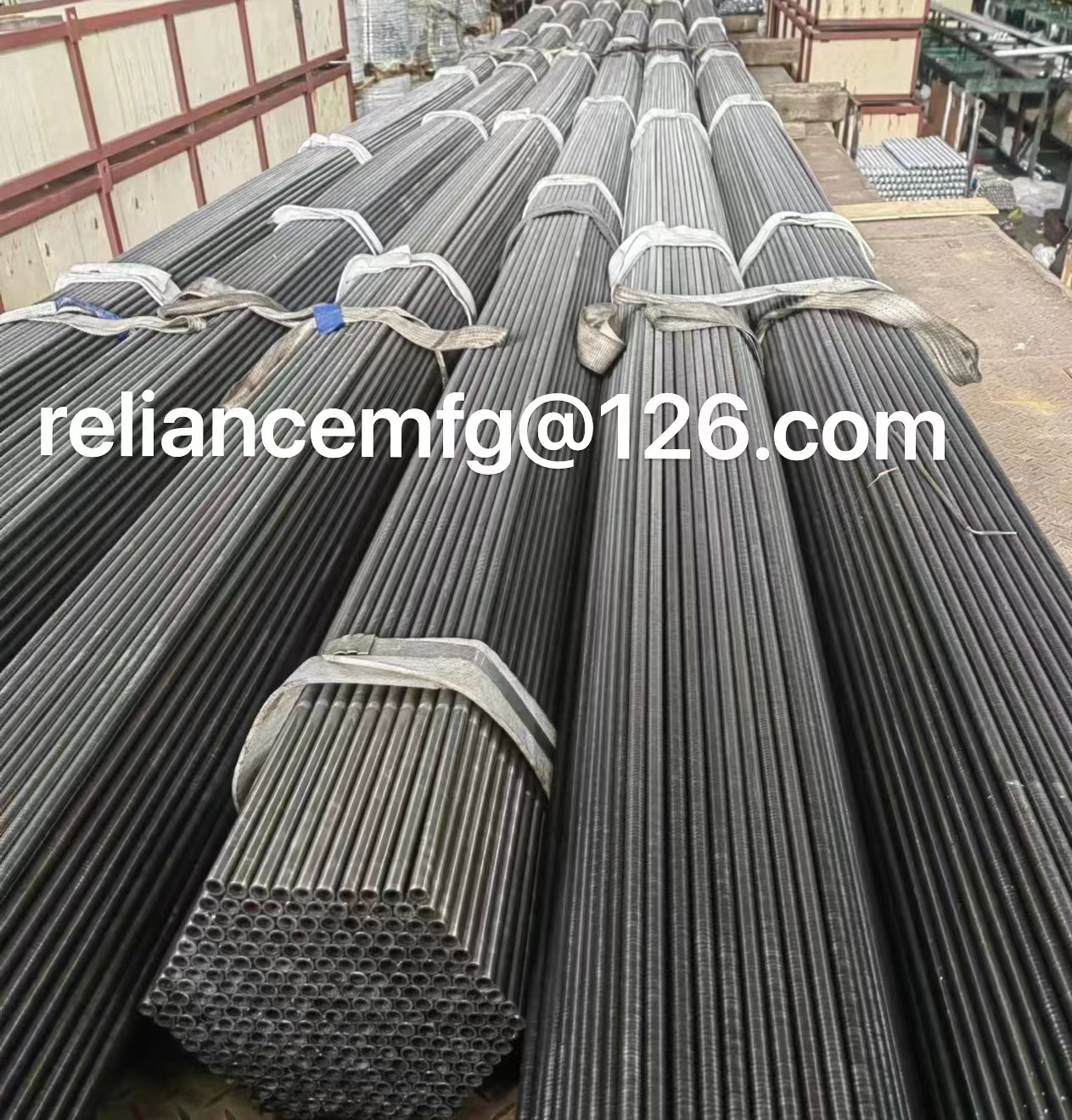

6>>> Export packing

7>>>Transportation

Specifications:

***Products(LOW FIN TUBES) are certified by BUREAU VERITAS

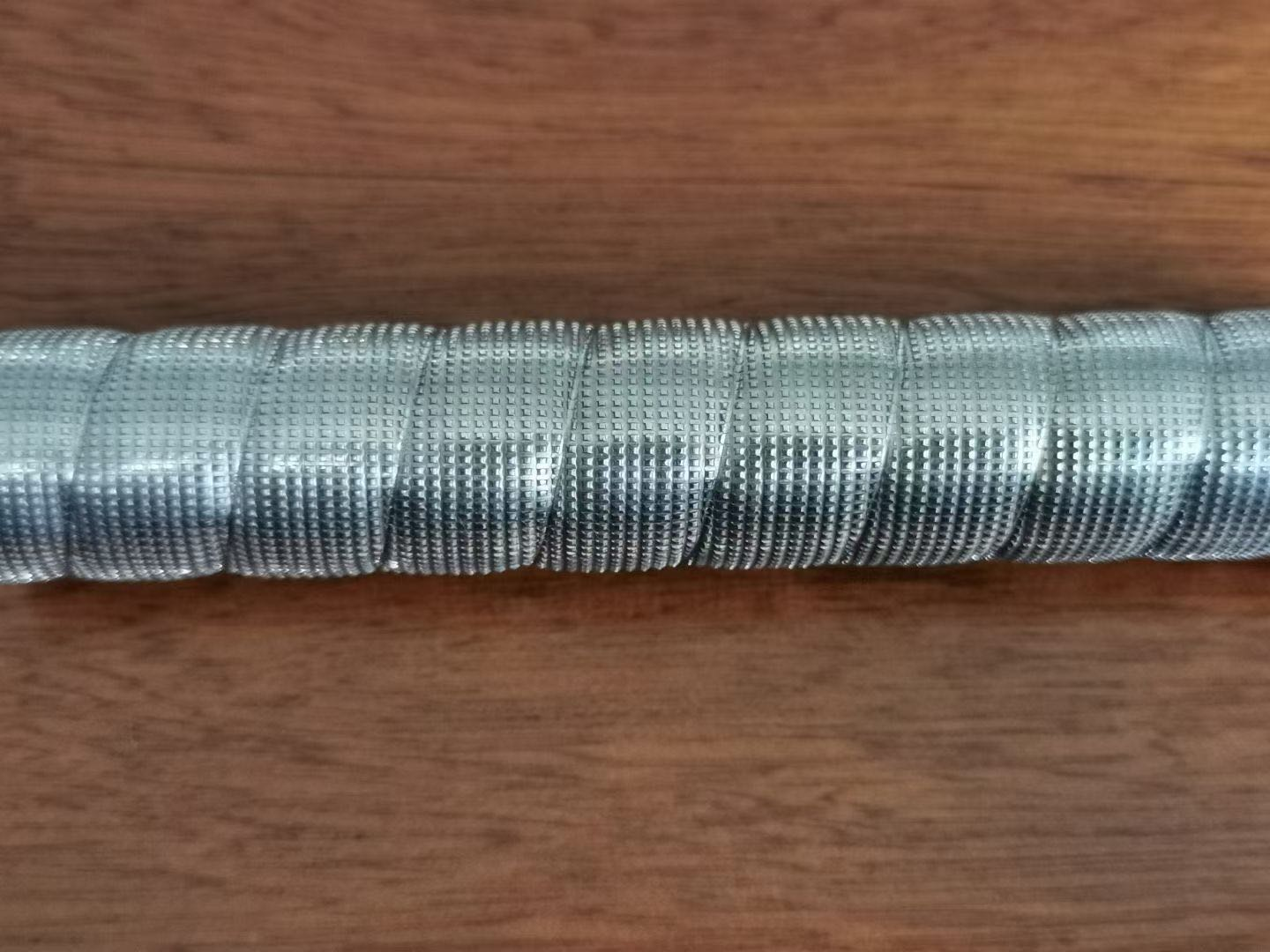

Other low fin tubes types, including KNURKED LOW FINS.

About Reliance

Jiangsu Reliance Thermal Equipment Co., Ltd is all about thermal transfer finned tubes products. We have a long-term fabrication and supply experience in the business of FINING MACHINES and FINNED TUBES used in air-cooled heat exchanger, economizers, boilers, gas turbines, refining and petrochemical industries ect.

Advantages

• One-stop manufacturer shop from core tube supply to fin tube machines
• ISO 9001:2015 certified company
• Experienced and dedicated management and qualfied manpower
• Quickest response, competitive price, highese quality and shortest schedule
• Tube stock availability for general grades of carbon steel and stainless steel
• Technical support services for fin tube machines and replacement accessories

FINNED TUBES PRODUCTS & SERVICE AVAILABLE

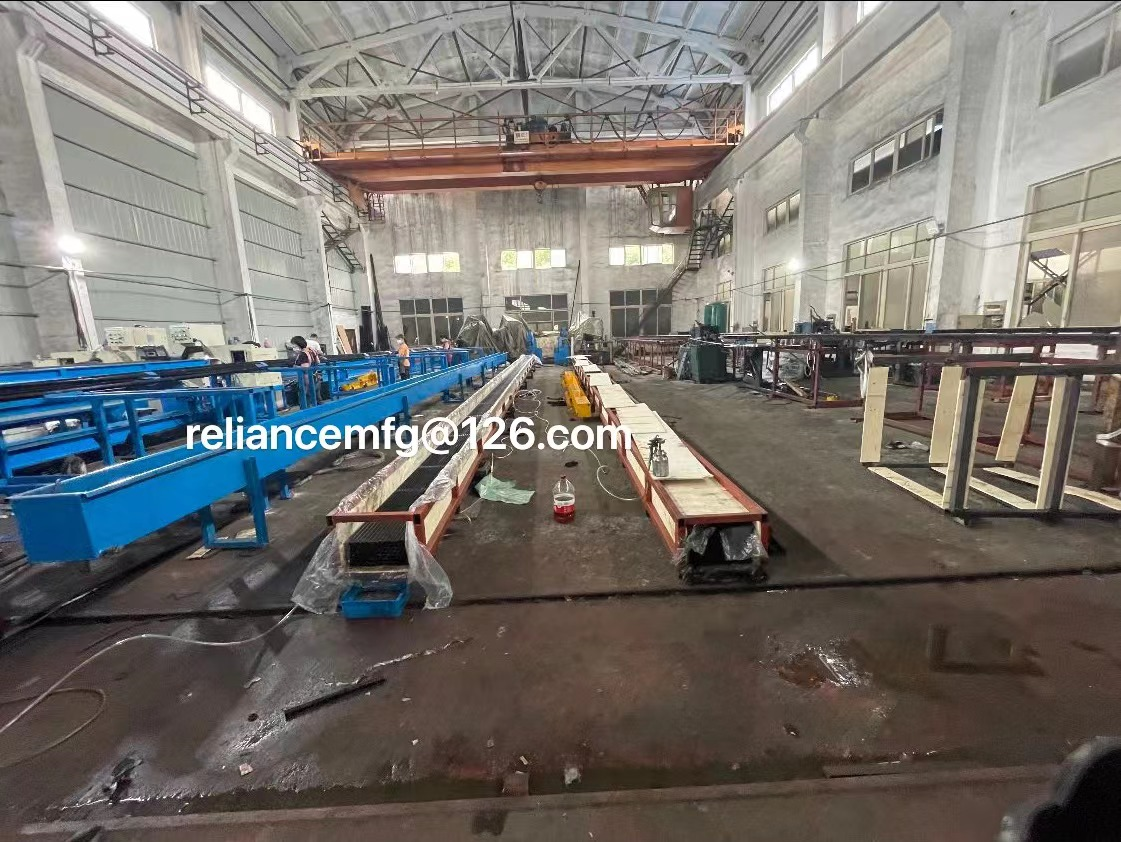

Fabrication Capacities

(1)  Fourteen extrusion fining lines, daily capacity around 15,000 meters

(2)  Five type L/LL/KL fining lines, daily capacity around 5000 meters

(3)  Seven G- base fining lines, daily capacity around 7000 meters

(4)  Two ERW studding lines, daily capacity around 80000 studs

(5)  Four ERW High Frequency Spiral fining lines, daily capacity around 30 tons

(6)  Three bending machines, maximum capacity 76X4

(7)  Five DC ERW H/HH fining lines, daily capacity around 20 tons

(8)  One PLC high speed punch presser

Reliance have become a qualified manufacturer and reliable supplier for high-quality thermal transfer finned tubes used in air-cooled heat exchanger,economizers,boilers,gas turbines,refining and petrochemical industries ect.

If you are interested in any of our products, please do not hestitate to contact us @reliancemfg@126.com
