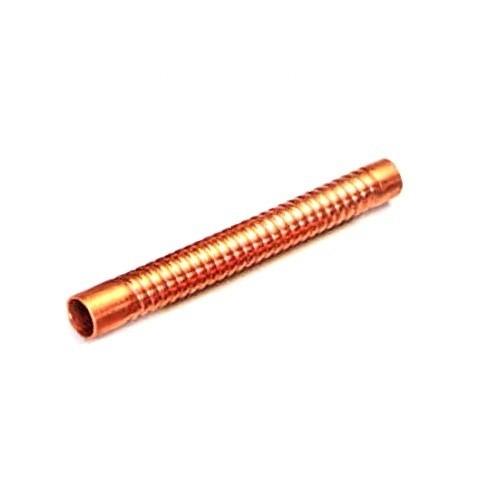

C12100 / C68700 Extruded Corrugated Aluminum Low Fin Tube
Properties of Low Fin Tubes or Integral Fin Tubes:-
ASTM B111: Copper and Copper-Alloy Seamless Condenser Tubes and
Ferrule Stock
Quick Detail:
No | Particulars | Range |
1 | Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit) |
2 | Base Tube Outside Diameter | 12.70 mm to 38.10 mm |
3 | Base Tube Thickness | 2.11 mm And Above |
4 | Base Tube Length | 500 mm Min To 15000 mm |
5 | Fin Density | Up to 1023 FPM ( 26 FPI ) |
6 | Bare Ends | As per Client Requirement |
7 | Manufacturing Capacity | 7,00,000 Meter Per Annum |
Description:
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass
roller. Tubes and fins are in same piece tube. We call it “N” fin type.
Delivery of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR
bent with designed Bend Radius.
Quality Test:
The integral low fin tube quality is assured by hydrostatic or
pneumatic tests, eddy current tests & MARCO tests in order to
verify design specifications.
Acceptance ceritia:
WOLVERINE / HPT / GEWA-K & GEWA-KS
Delivery condition:
Tube ends are square cut, free burrs, internally dried and air
blown clean, externally coated with varnish.
The desiccants are put into the each package for continental
transportation.
Applications:
The Integral Low Finned Tubes find the preference in the following
industrial sectors:
Specifications:
Tube and fins consist of same tube and materials as carbon steel ,
low-alloy steels , stainless steel , brass , copper , cooper-nickel
alloys , aluminum bronze , nickel alloys , titanium etc...
Plain tube (mm) | Finned section dimensions (mm) | Ratio | De | |||
D×t | Tp | dd | dr | di | η | mm |
19×2 | 0.8 | 18.8 | 17 | 134 | 2.8 | 17.9 |
19×2 | 1 | 18.8 | 16.8 | 13.4 | 2.5 | 17.8 |
19×2 | 1.25 | 18.8 | 16.6 | 13 | 2.2 | 17.8 |
19×2 | 1.5 | 18.8 | 16.6 | 13 | 2 | 17.7 |
19×2 | 2 | 18.8 | 16.4 | 13 | 1.7 | 17.5 |
25×2.5 | 0.8 | 24.8 | 23 | 18.8 | 2.8 | 23.9 |
25×2.5 | 1 | 24.8 | 22.6 | 18.8 | 2.75 | 23.7 |
25×2.5 | 1.25 | 24.8 | 22.3 | 18 | 2.5 | 23.6 |
25×2.5 | 1.5 | 24.8 | 22.3 | 18 | 2.2 | 23.5 |
25×2.5 | 2 | 24.8 | 22 | 18 | 1.8 | 23.4 |
25×2.5 | 2.5 | 24.8 | 22 | 18 | 1.6 | 23.3 |
D------Outside diameter of plain end section | ||||||
Please email us for more information. |
